Mechanical Panels

Variable width mechanically seamed panels are the perfect option for low pitch roofs in both commerical and residental applications. These systems are rated for as low as .25/12 pitch and most do not require decking.

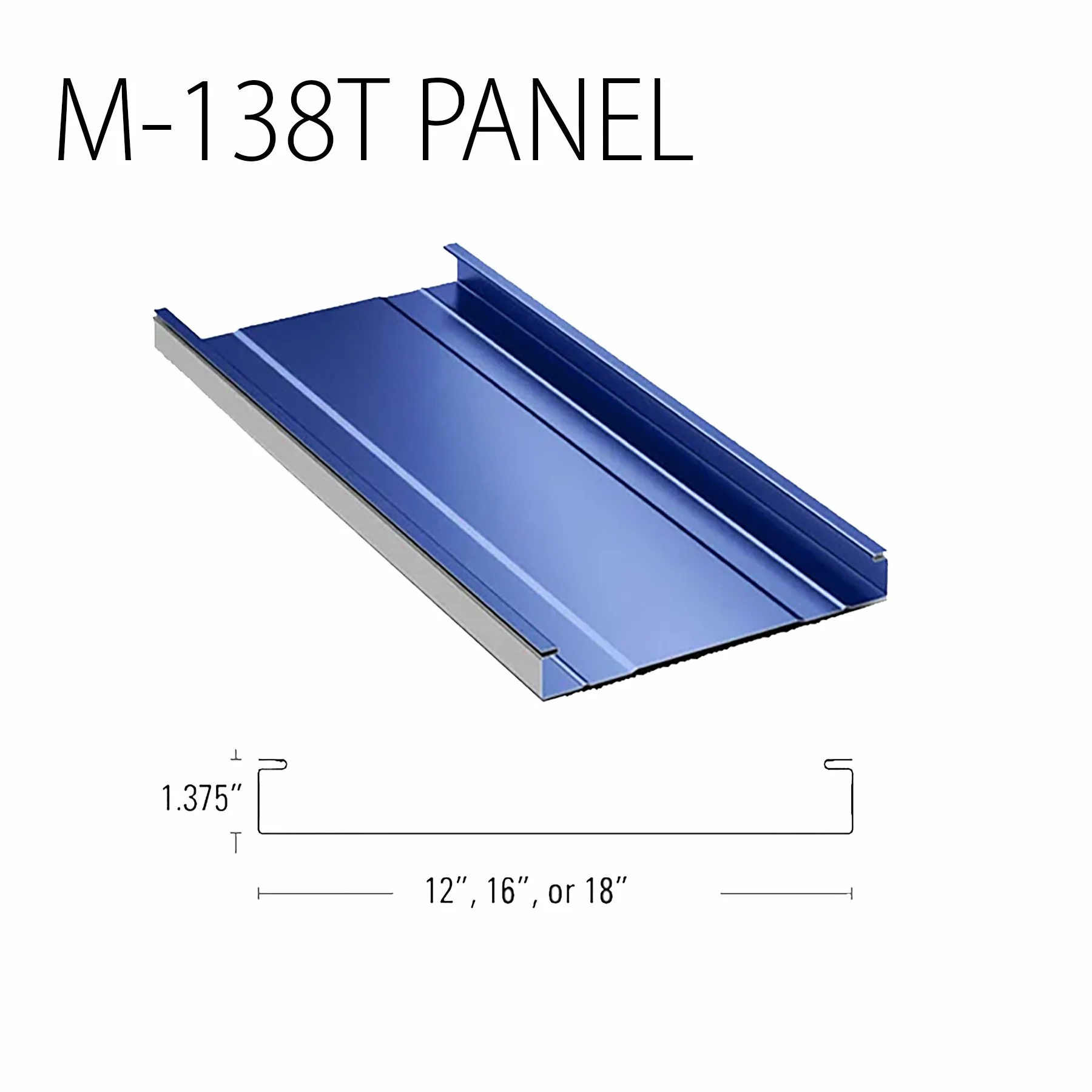

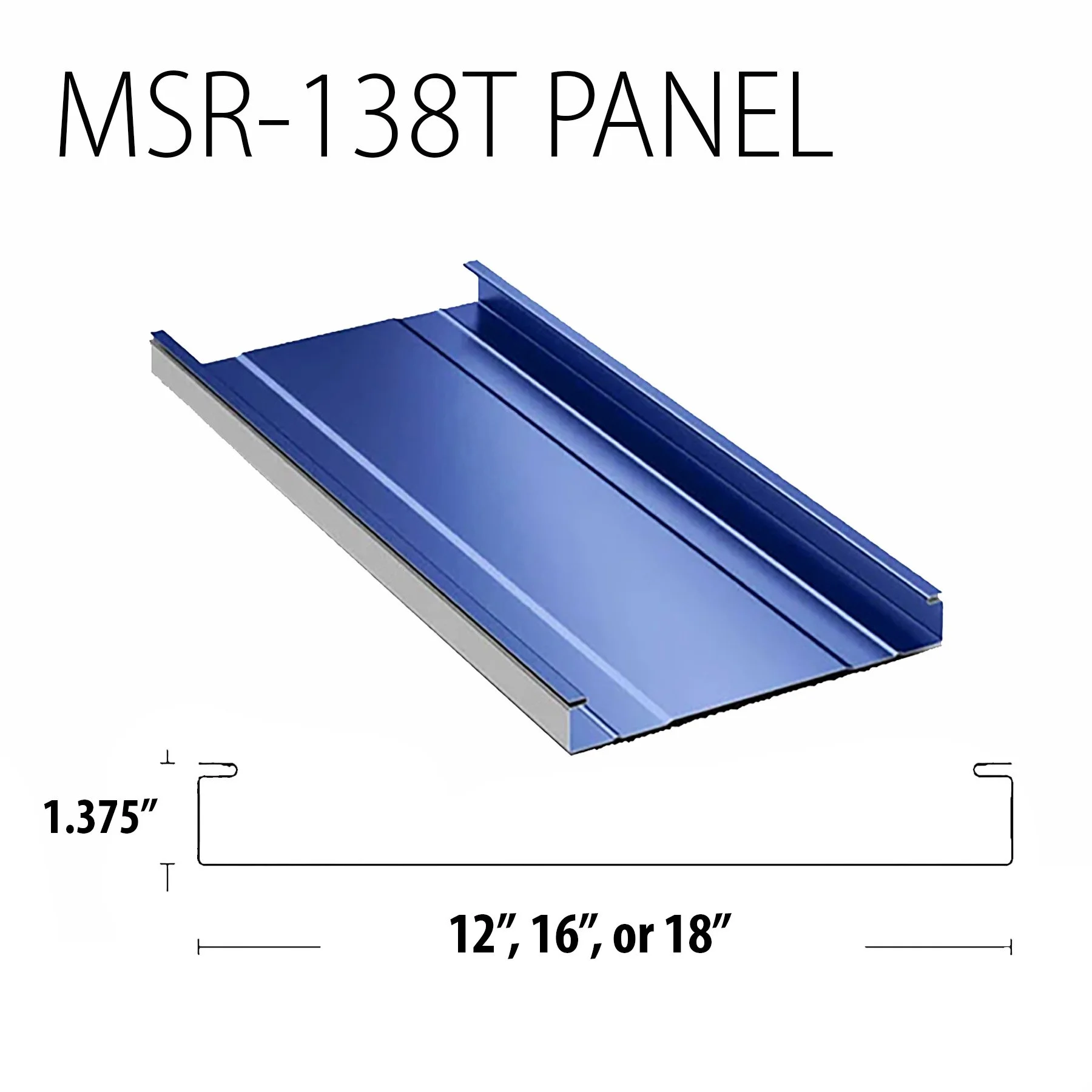

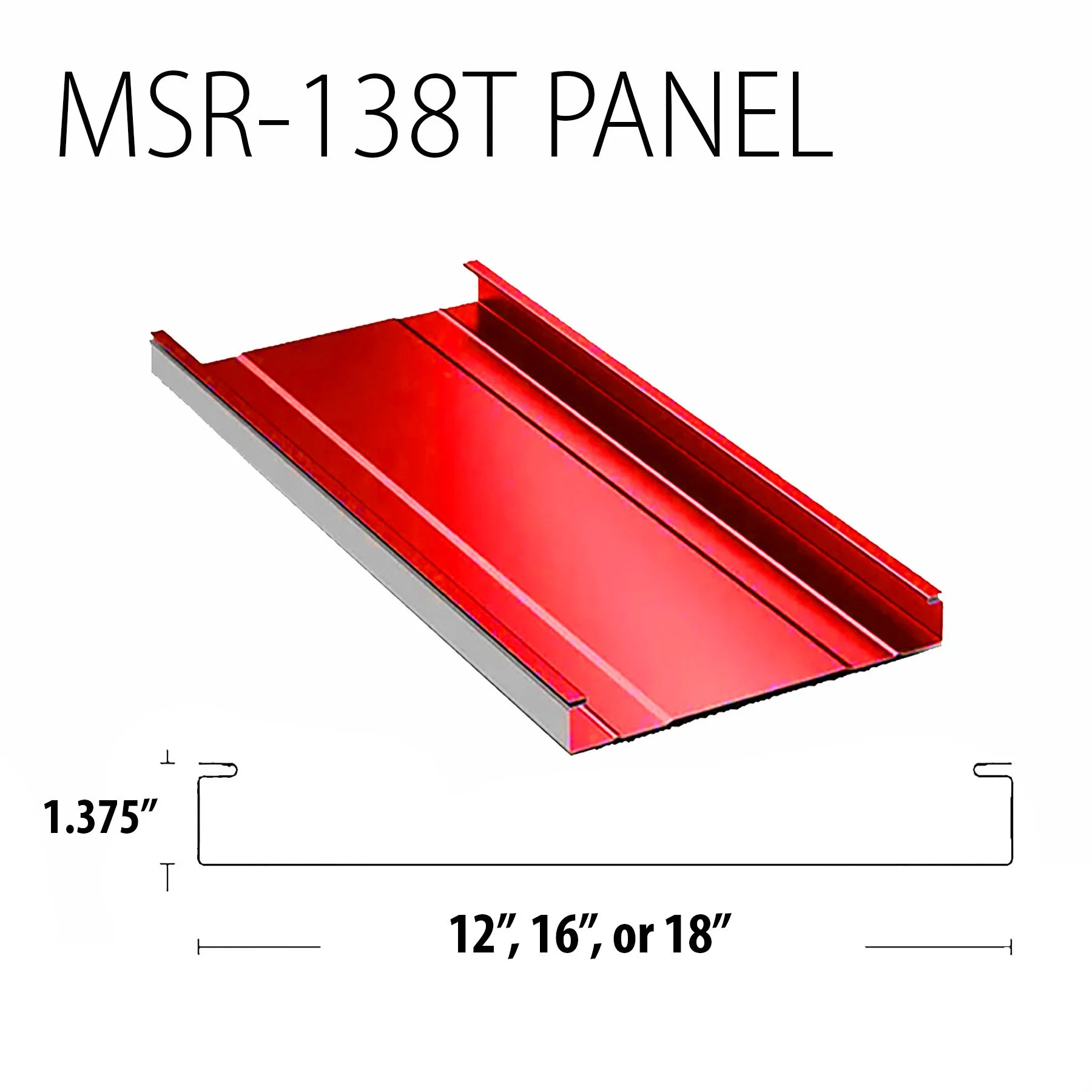

McElroy 138T

McElroy 138T

  • 1/12 pitch or greater

  • Single piece panels up to 250 foot long

  • Individual panel replaceability

  • Able to be curved to fit barreled roofs.

  • Available in 22 or 24 Gauge Painted Steel

  • Also available in Aluminum

  • Available in 12, 16, and 18 inch panels

  • UL Class 90 Uplift Rating

  • Class A Fire Rating

  • Kynar 500 Paint

  • 30 Year Non-Prorated Warranty

  • McElroy Weathertight Warranty Available

This panel is a Mcelroy Metal Panel. MSR is certified by McElroy Metals to produce this panel.

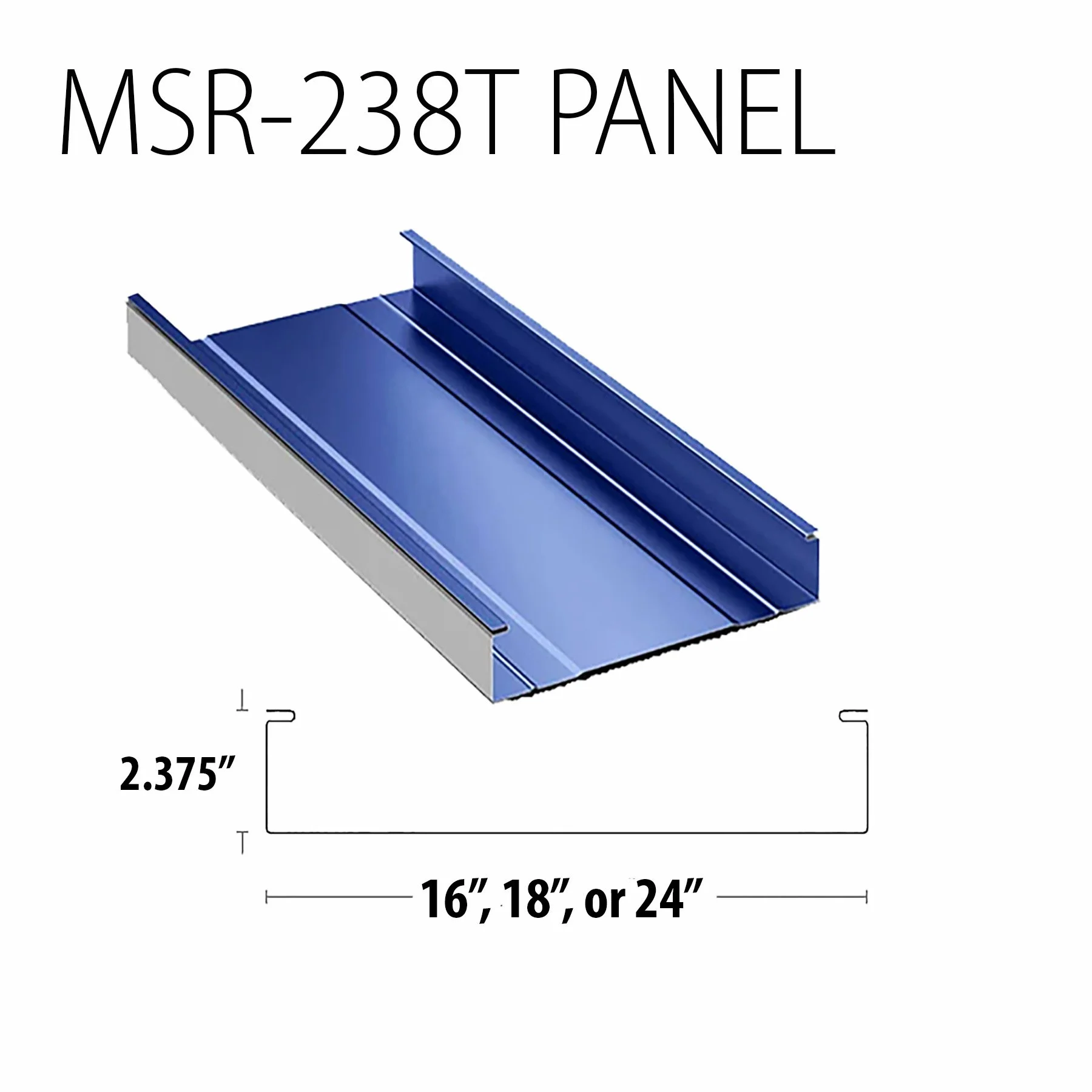

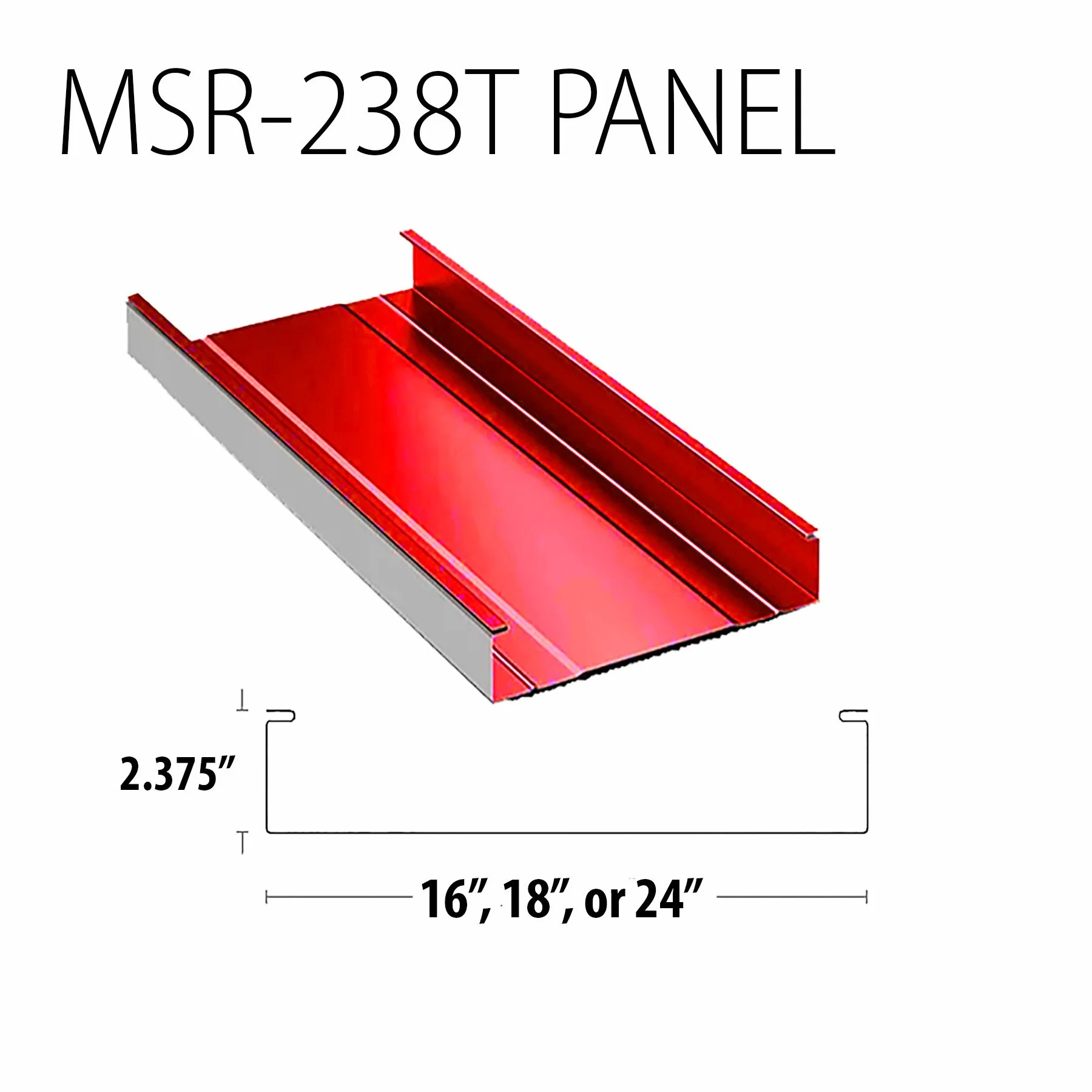

McElroy 238T

McElroy 238T

  • .25/12 pitch or greater
  • Single piece panels up to 250 foot long
  • Individual panel replaceability
  • Able to be curved to fit barreled roofs.
  • Available in 22 or 24 Gauge Painted Steel
  • Also available in Aluminum
  • Available with Striations or Smooth Panel
  • Available in 12, 16, and 18 inch panels
  • UL Class 90 Uplift Rating
  • Class A Fire Rating
  • Kynar 500 Paint
  • 30 Year Non-Prorated Warranty
  • McElroy Weathertight Warranty Available

This panel is a Mcelroy Metal Panel. MSR is certified by McElroy Metals to produce this panel.

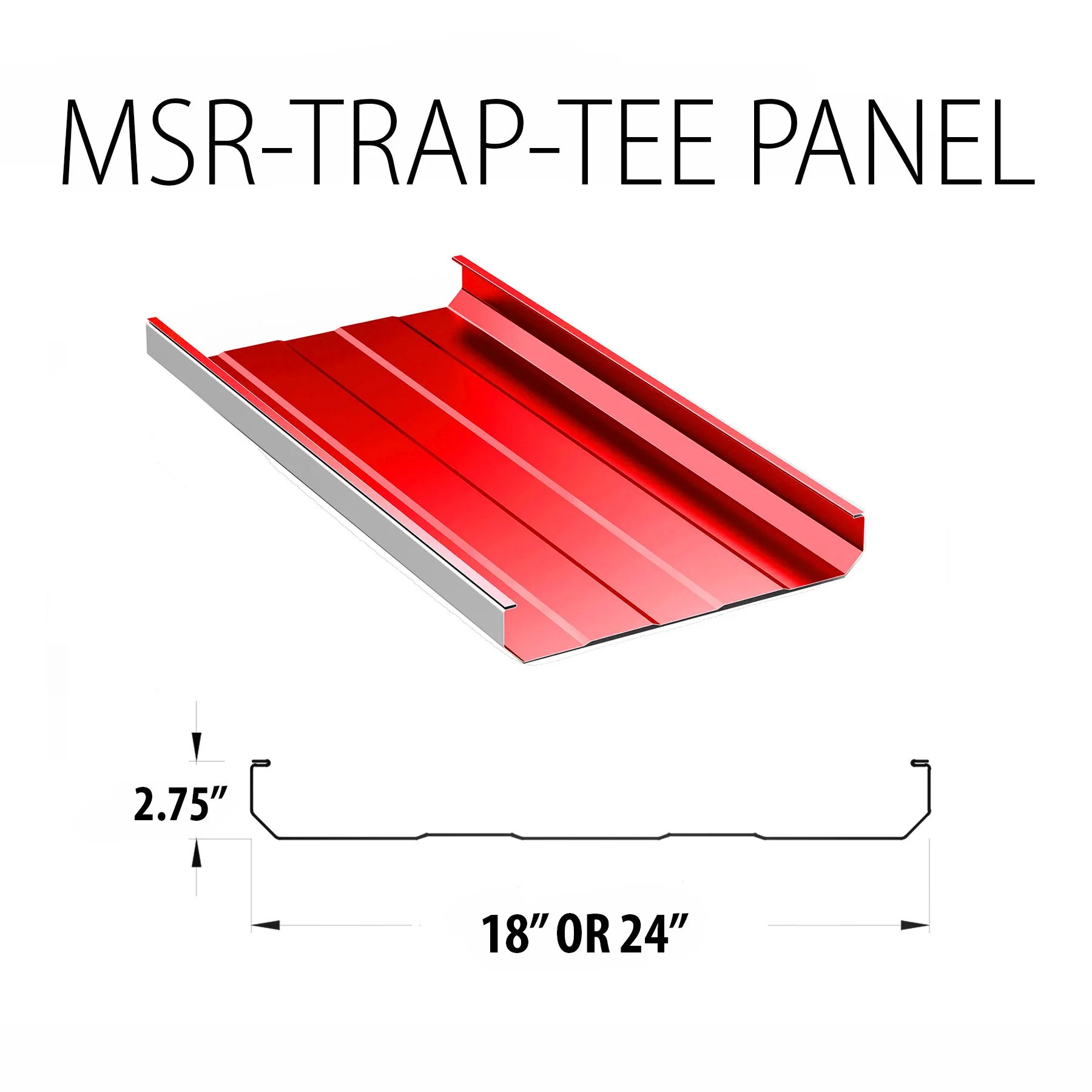

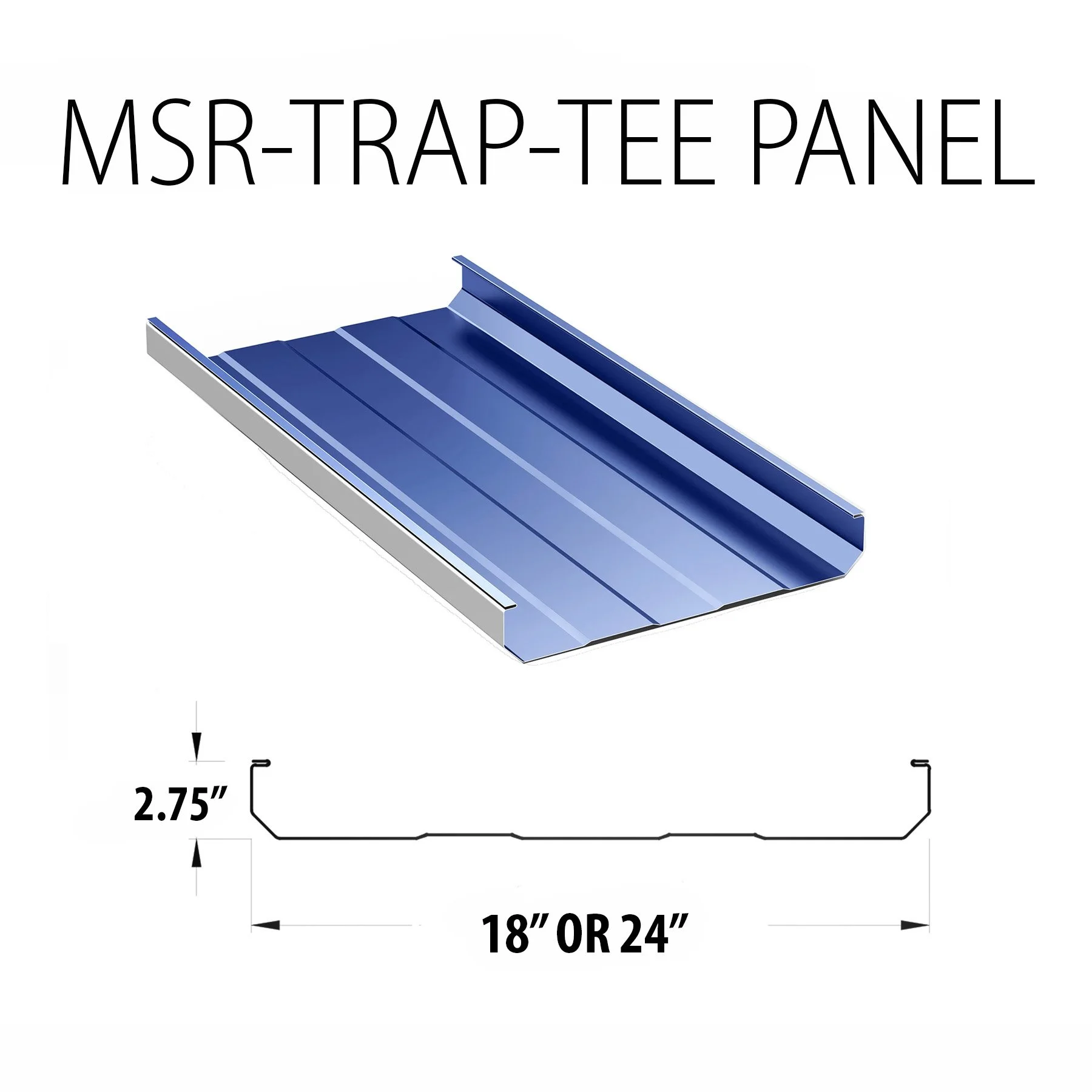

McElroy Trap-Tee

McElroy Trap Tee

  • Ideal for remove and replace or recover
  • .25/12 pitch or greater
  • Available in 22, 24, or 26 Gauge Painted Steel
  • Also available in Aluminum
  • Single piece panels up to 250 Foot long
  • Available with Striations or Smooth Panel
  • Available in 18 and 24 inch panels
  • UL Class 90 Uplift Rating
  • Class A Fire Rating
  • Kynar 500 Paint
  • 30 Year Non-Prorated Warranty
  • McElroy Weathertight Warranty Available

This panel is a Mcelroy Metal Panel. MSR is certified by McElroy Metals to produce this panel.

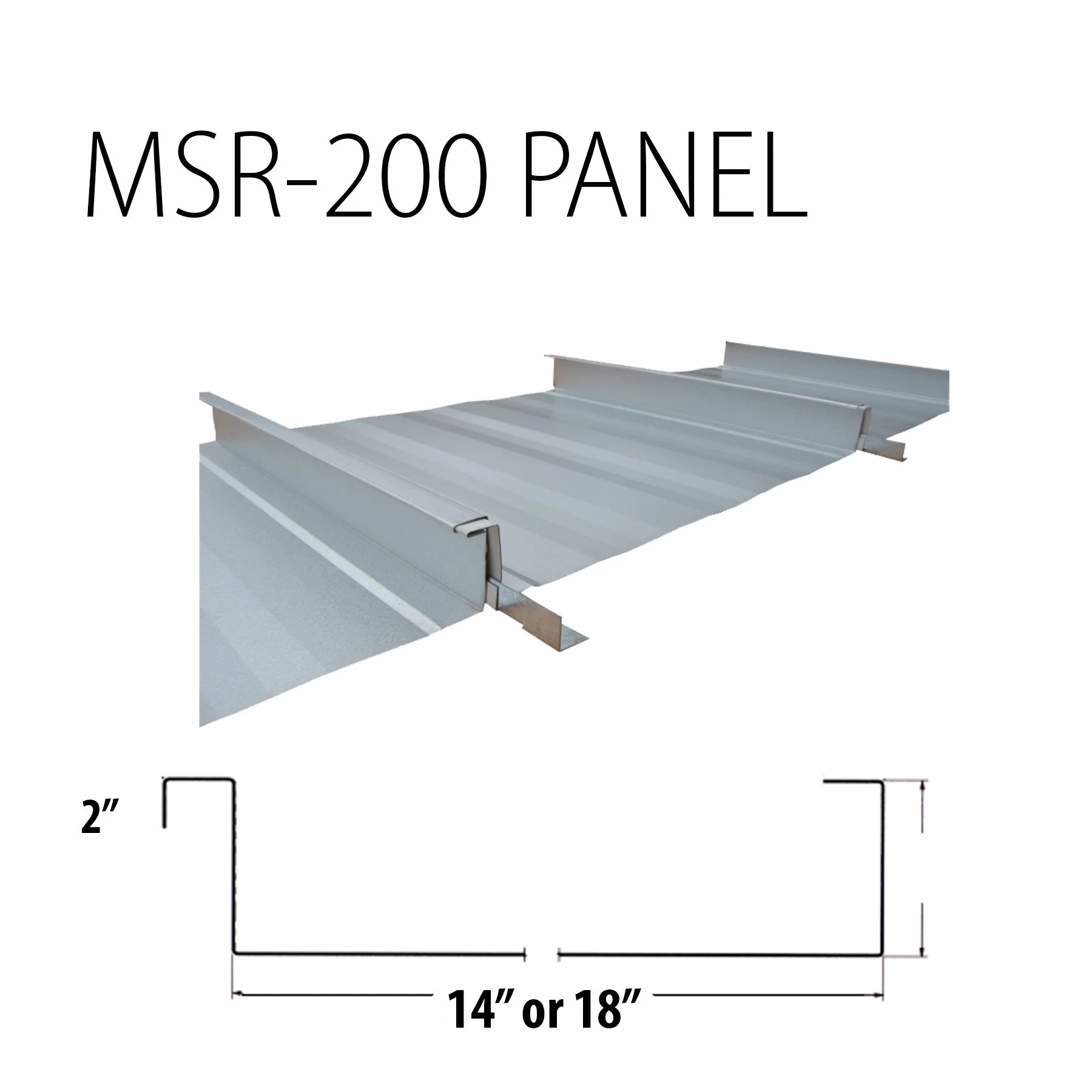

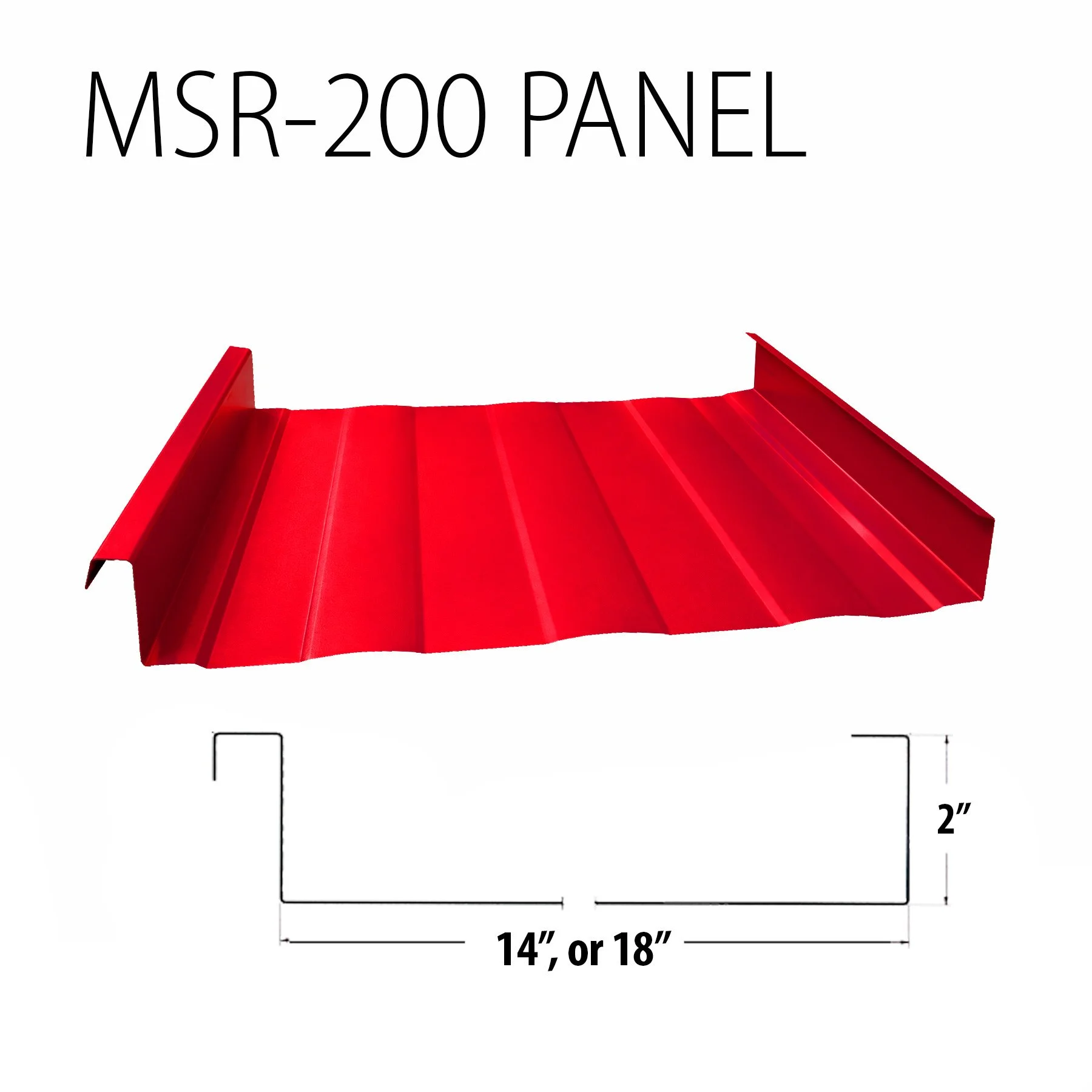

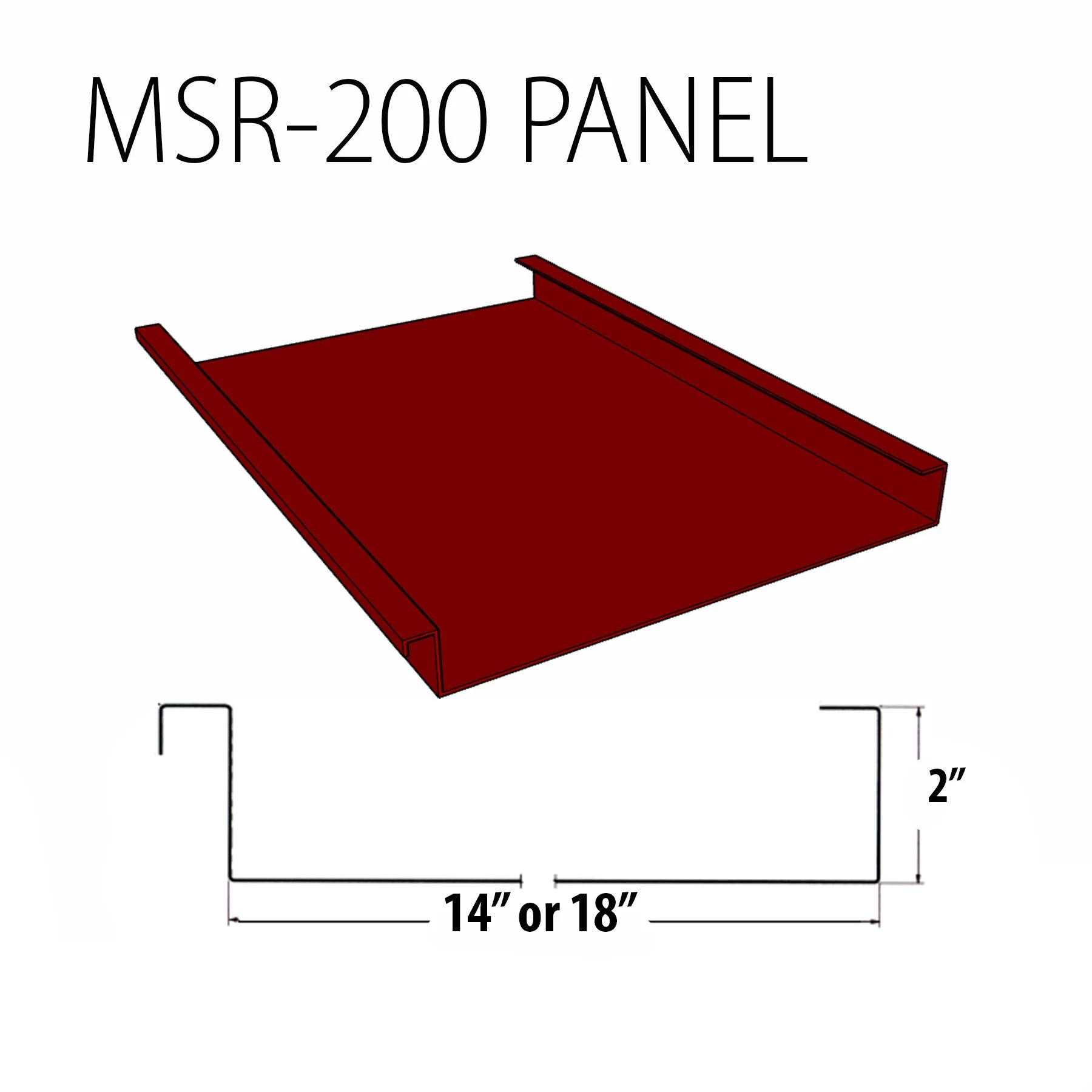

MSR 200

MSR 200

  • Ideal for remove and replace
  • .5/12 pitch or greater
  • Available in 22, 24, or 26 Gauge Painted Steel
  • Also available in Aluminum
  • Single piece panels up to 250 Foot long
  • Available with Striations
  • Available in 14 and 18 inch panels
  • UL Class 90 Uplift Rating
  • Class A Fire Rating
  • Kynar 500 Paint
  • 30 Year Non-Prorated Warranty


If you need help deciding which panel would work best for, please reach out to one of our sales representatives and they will be happy to walk you through your options.
